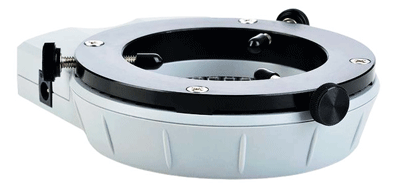

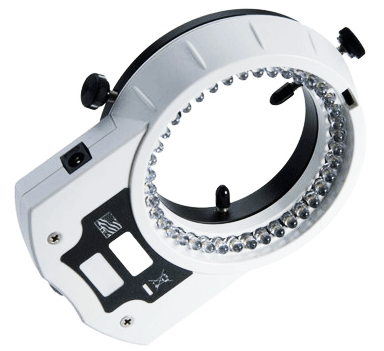

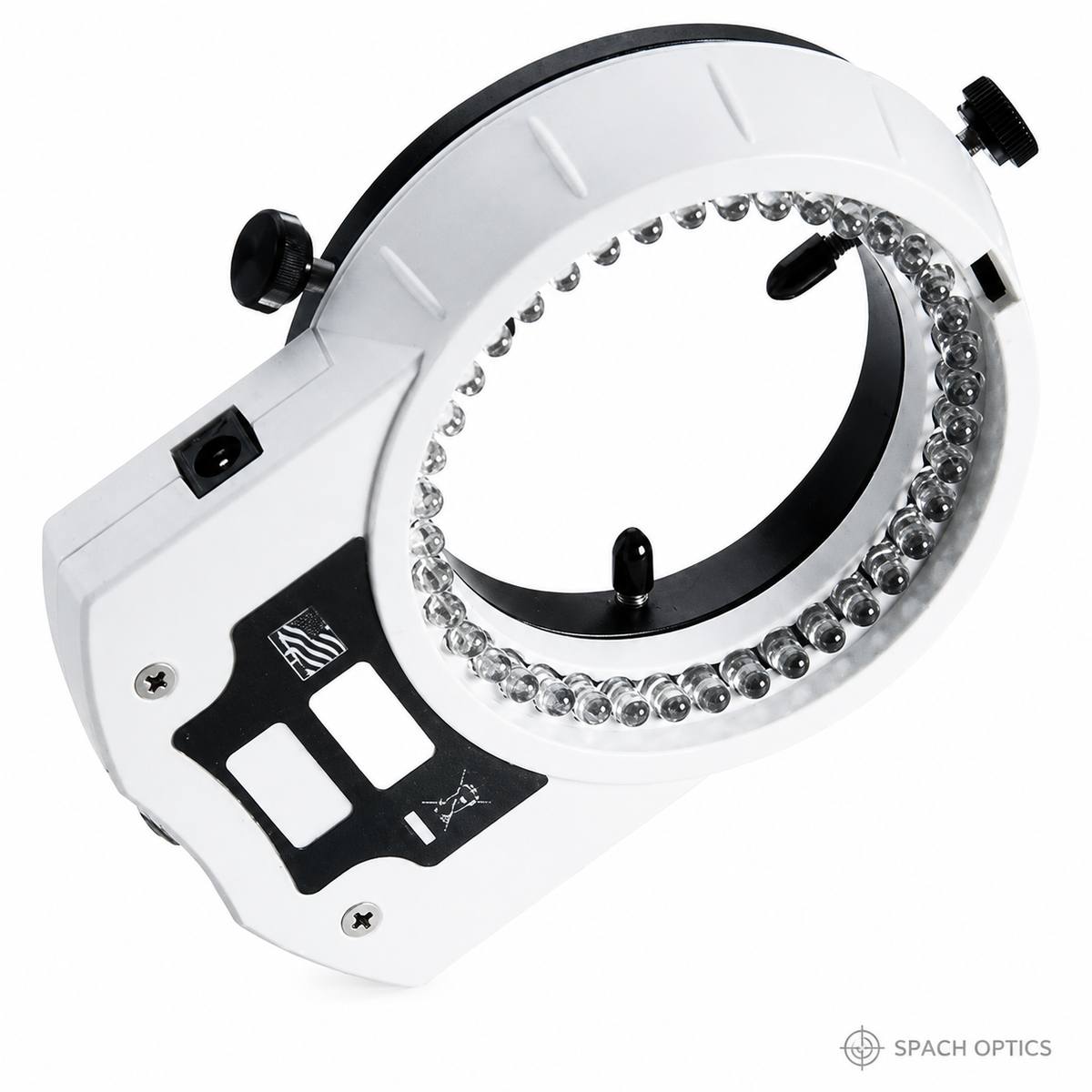

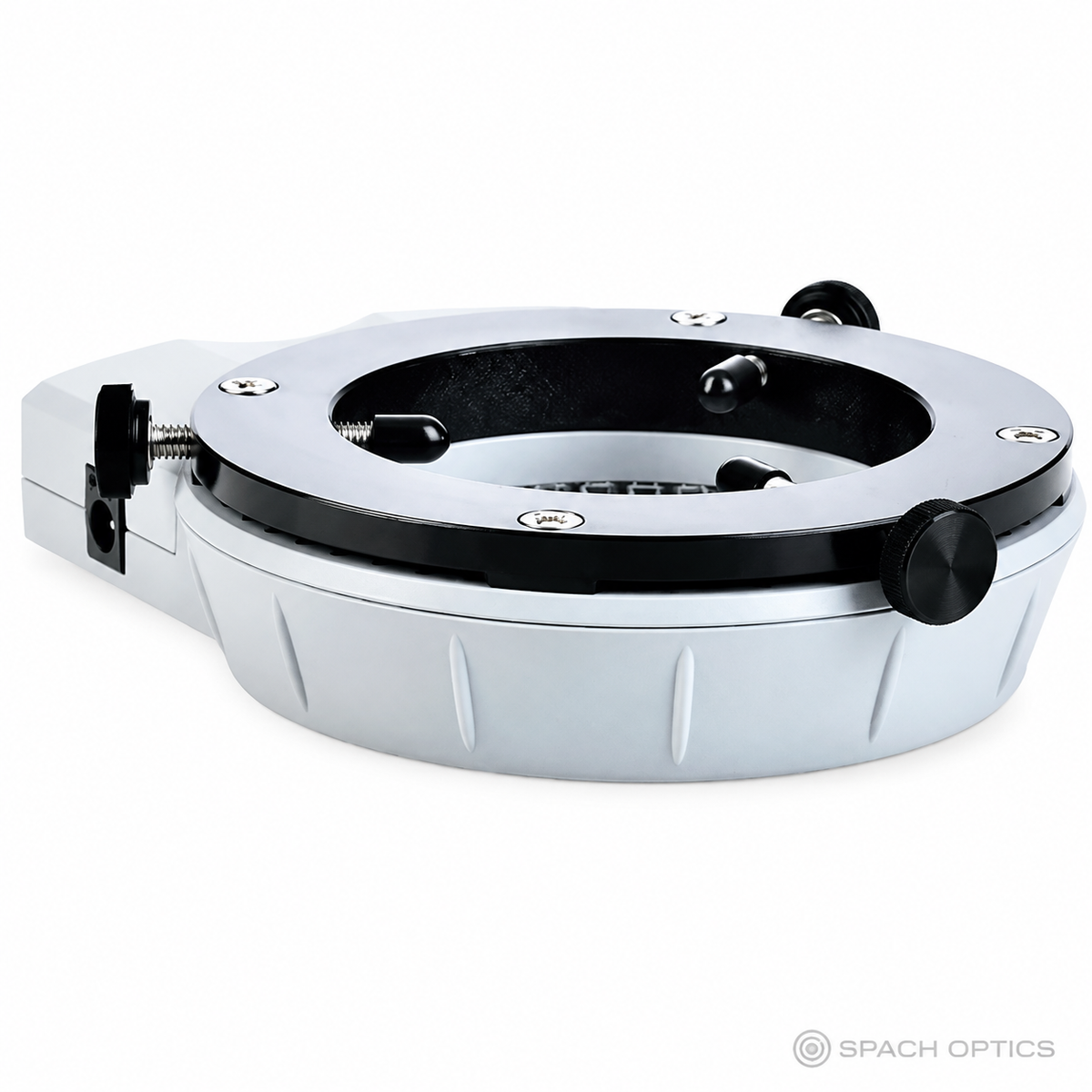

Techniquip Slimline 40 LED Ring Light Illuminator
Regular price
$330.00
80-LED professional ring light illuminator — dual independent dimming, 8-quadrant control, ESD-safe option, USA made.
KEY FEATURES
- 80 high-power precision-aligned LEDs
- Dual independently dimmable inner & outer rings — 0–100%
- 8 quadrant segment control for directional lighting
- 360° shadow-free illumination
- Color temperatures: 5500K, 4500K, 3200K, UV 375nm
- ESD-safe version with shielded cable and grounding strap
- 3-point soft-tip mounting screws for secure connection
- Silent, vibration-free operation
- 100% machined aluminum ring construction
- Auto voltage-sensing power supply — 100–240VAC, 50/60 Hz
- 24 standard configurations; custom UV, IR, wide-angle available
- Optional 82mm version for large stereo microscope objectives
- USA made — Techniquip Corporation
Backed by Spach Optics Warranty
Secure Packaging & Reliable Delivery
People-Powered Support
Technical Specifications
| LED Count | 80 high-power precision-aligned LEDs |
| LED Type | Daylight 5500K (standard); Cool White 4500K, Warm White 3200K, UV 375nm available |
| Dimming | Dual independent inner & outer rings, 0–100% infinitely dimmable |
| Segment Control | 8 quadrant segments |
| Working Distance | Min 2.5" (63mm) — Max 5.0" (127mm) — Ideal 3.5" (88mm) |
| Dimensions | 1.02" (26mm) H × 4.11" (105mm) O.D. × 2.63" (66mm) I.D. |
| Lens Fit | Standard 1.25"–2.6" (66mm); Optional 82mm version available |
| Housing | 100% machined aluminum ring |
| Mounting | 3-point soft-tip mounting screws |
| Power | Auto voltage sensing, 100–240VAC, 50/60 Hz (controller included) |
| ESD Option | Shielded interconnect cable, proprietary ESD metal finish, grounding strap (10mm snap) |
| Standard Configurations | 24 (custom UV, IR, wide-angle available) |
| Manufacturer | Techniquip Corporation (USA) |
Microscope Compatibility
| Standard model fits lenses 1.25"–2.6" (66mm) inner diameter | |
| Optional 82mm version fits large research-grade stereo microscope objectives | |
| Compatible with machine vision systems and automated inspection setups | |
| Works with standard controller and auto voltage-sensing power supply (included) | |
| ESD version compatible with grounded workstations (10mm snap grounding strap) |
Typical Applications
Stereo microscopy and low-magnification inspection
Industrial quality control and surface defect detection
Machine vision and automated inspection systems
PCB and electronics inspection (ESD-safe version)
Gemology, jewelry, and fine detail imaging
UV fluorescence inspection (UV 375nm version)
Photomicroscopy and scientific imaging
