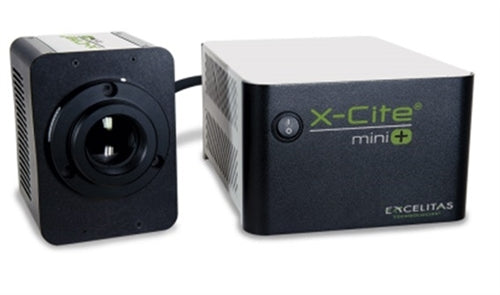

X-Cite mini+™ LED Fluorescence Microscopy Light Source

Compact and High Power white-light LED Illumination

The X-Cite mini+ is the new go-to white light LED light source for fluorescence imaging applications. High power performance, compact size and economically priced, the X-Cite mini+ is the perfect choice for routine fluorescence imaging.

Improved LED technology enables the
X-Cite mini+ to provide more power to the sample plane than any of our previous direct-coupled systems. Offering two models with a choice of UV wavelengths (365nm or 385nm), labs have the flexibility to choose the one that works with their preferred or existing DAPI filter sets. The X-Cite mini+ comes with built-in controls and each system includes intuitive fingertip control with speedDIAL, hands-free operation with a foot pedal, and USB and TTL inputs for automated applications. X-Cite mini+ has a 20,000 hour warranty; there are no lamps to change, no mercury disposal fees and no light guides to replace. With energy-efficient LEDs and the advantage of instant ON/OFF to minimize power consumption, the X-Cite mini+ fits into any research lab’s “go-green” strategy.

Features and Benefits:

• LED Technology: Efficiency, stability, instant ON/OFF, long lifetime, mercury-free
• White Light Excitation: Excitation of commonly used fluorophores such as DAPI, CFP, GFP/FITC, YFP, mCherry/Texas Red, and Cy5
• Direct Coupled: High power excitation
• Multiple Control Options: Simple operation through USB, TTL or speedDIAL
• Small Footprint: Minimal space requirement; less bench-top real estate used
• Optimized Thermal Management: Maximum LED output, lifetime, stability and reliability
• X-Cite Coupling Optics: Efficient optical output and uniformity with highest performing coupling optics

Filter Recommendations

Fluorophores

Control Options

Control Options
Manual Control – speedDIAL	ON/OFF
	Speed sensitive intensity control
	1 favorite intensity setting
	Left and right-handed control option
USB	ON/OFF
	Intensity control
	Compatible with X-Cite 120PC, X-Cite exacte, X-Cite 120LED and X-Cite 110LED drivers
TTL	ON/OFF

Spectral Curve
